Spin-Weighted Spheroidal Harmonics

Overview

The SpinWeightedSpheroidalHarmonics package provides functions for computing spin-weighted spheroidal harmonics, spin-weighted spherical harmonics, and their associated eigenvalues. Support is included for both arbitrary-precision numerical evaluation and for series expansions.

The SpinWeightedSpheroidalHarmonics package gives solutions to the angular Teukolsky equation: \(\bigg[\frac{1}{\sin\theta}\dfrac{d}{d\theta}\bigg(\sin\theta\dfrac{d}{d\theta}\bigg) -\gamma^2 \sin^2\theta -\frac{(m+s \cos\theta)^2}{\sin^2\theta} - 2 s \gamma \cos\theta +s + {}_s \lambda_{\ell m} + 2 m \gamma \bigg] {}_{s} S_{\ell m}(\gamma;\theta,0) = 0 \,,\)

where $s$ is the spin-weight, $\ell, m$ are the multipolar indices, ${}_s \lambda_{\ell m }$ is the spin-weighted spheroidal eigenvalue and $\gamma = a \omega$ is the spheroidicity.

Output tracks the precision of the input, so high-precision results are obtained simply by giving high-precision arguments. Expansions are available both for small $\gamma$ (in terms of spin-weighted spherical harmonics) and, for the eigenvalue, about $\gamma = \infty$.

The package provides the angular dependence for the Teukolsky package and is also a dependency of ReggeWheeler. Full reference documentation is available online and in the Wolfram Documentation Center.

Installation

SpinWeightedSpheroidalHarmonics is distributed as a paclet. Once the BHPToolkit paclet server is set up (see Get started), install it by name:

PacletSiteRegister["https://pacletserver.bhptoolkit.org", "Black Hole Perturbation Toolkit Paclet Server"]
PacletSiteUpdate["https://pacletserver.bhptoolkit.org"]
PacletInstall["SpinWeightedSpheroidalHarmonics"]

Usage

Loading the package

The package can be loaded with:

<<SpinWeightedSpheroidalHarmonics`

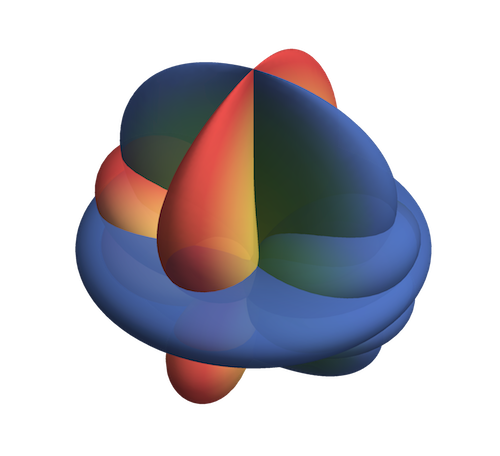

Spin-weighted spheroidal harmonics ${}_sS_{\ell m }$

SpinWeightedSpheroidalHarmonicS[s,ℓ,m,γ,θ,ϕ] returns a spin-weighted spheroidal harmonic ${}_s S_{\ell m} (\gamma;\theta,\phi)$, which is a to the angular Teukolsky equation:

SpinWeightedSpheroidalHarmonicS[s,l,m,γ,θ,ϕ]

For numerical use it is recommended to a priori omit the angular arguments:

S=SpinWeightedSpheroidalHarmonicS[-2,2,2,.5]
S[.3,.5]

Spin-weighted spherical harmonics ${}_sY_{\ell m }$

SpinWeightedSphericalHarmonicY[s,ℓ,m,θ,ϕ] gives the spin-weighted spherical harmonic function ${}_s Y_{\ell m}(θ,ϕ) = {}_s S_{\ell m}(0;θ,ϕ)$:

Y=SpinWeightedSphericalHarmonicY[-2,2,2,θ,ϕ]

Spin-weighted spheroidal eigenvalue

SpinWeightedSpheroidalEigenValue[s,ℓ,m,γ] gives the spin-weighted spheroidal eigenvalue ${}_s \lambda_{\ell m}$:

λ=SpinWeightedSpheroidalEigenvalue[-2,2,2,.4]

Series expansions

The spin-weighted spheroidal harmonics ${}_s S_{\ell m} (\gamma;\theta,\phi)$ can be expanded in spin-weighted spherical harmonics ${}_s Y_{\ell m} (\theta,\phi)$:

SpinWeightedSpheroidalHarmonicS[s,l,m,γ,θ,ϕ]//Series[#,{γ,0,2}]&

Likewise the eigenvalue admits a series expansion:

SpinWeightedSpheroidalEigenvalue[s,l,m,γ]//Series[#,{γ,0,3}]&

The eigenvalue can also be expanded about $\gamma = \infty$. This currently requires explicit (integer or half-integer) values of $s$, $\ell$ and $m$:

Series[SpinWeightedSpheroidalEigenvalue[2, 2, 2, γ], {γ, ∞, 6}]

which returns

When making extensive use of series expansions it can be useful to run the following:

SetSpinWeightedOptions["OverloadSeries"->True]

Examples

Satisfying the spheroidal equation

We can write out the spheroidal equation,

SpheroidalEquation[s_, ℓ_, m_, γ_, θ_, φ_] :=
 Module[{aux, ϑ, ϕ},
  aux = D[SpinWeightedSpheroidalHarmonicS[s, ℓ, m, γ, ϑ, ϕ], {ϑ, 2}] + Cot[ϑ] D[SpinWeightedSpheroidalHarmonicS[s, ℓ, m, γ, ϑ, ϕ], ϑ] + (2 γ (m - s Cos[ϑ]) - (m + s Cos[ϑ])^2/Sin[ϑ]^2 + SpinWeightedSpheroidalEigenvalue[s, ℓ, m, γ] + s - γ^2 Sin[ϑ]^2) SpinWeightedSpheroidalHarmonicS[s, ℓ, m, γ, ϑ, ϕ];
  aux = aux /. {ϑ -> θ, ϕ -> φ};
  aux
  ]

SpheroidalEquation[s, ℓ, m, γ, θ, φ]

and check that our solutions satisfy it numerically to arbitrary precission,

SpheroidalEquation[-2, 2, 2, .3`300, .2`300, .5`300]

or analytically as a series expansion.

SpheroidalEquation[-2, 2, 2, γ, θ, ϕ] //Series[#, {γ, 0, 5}] & // Simplify

Implementing spin raising and lowering operators in Schwarzschild

We can use SpinWeightedSimplify to implement the Schwarzschild ð and ð’ as spin raising and lowering operators

ð[SpinWeightedSphericalHarmonicY[s_, ℓ_, m_, ϑ_, ϕ_]] := 1/(Sqrt[2] r) (D[#, ϑ] + I Csc[ϑ] D[#, ϕ] - s Cot[ϑ] #) &@ SpinWeightedSphericalHarmonicY[s, ℓ, m, ϑ, ϕ];
ðp[SpinWeightedSphericalHarmonicY[s_, ℓ_, m_, ϑ_, ϕ_]] := 1/(Sqrt[2] r) (D[#, ϑ] - I Csc[ϑ] D[#, ϕ] + s Cot[ϑ] #) &@ SpinWeightedSphericalHarmonicY[s, ℓ, m, ϑ, ϕ];

ð[SpinWeightedSphericalHarmonicY[-4, ℓ, m, ϑ, ϕ]] // SpinWeightedSimplify[#, "s" -> -3] & // Simplify
ðp[SpinWeightedSphericalHarmonicY[-4, ℓ, m, ϑ, ϕ]] // SpinWeightedSimplify[#, "s" -> -5] & // Simplify

Further examples

See the online reference documentation (also available in the Mathematica Documentation Centre) for a tutorial and documentation on individual functions. More example notebooks are in the Mathematica Toolkit Examples repository.

Authors and contributors

Barry Wardell, Niels Warburton, Kwinten Fransen, Samuel Upton, Kevin Cunningham, Marc Casals, Sarp Akcay, Adrian Ottewill, Jakob Neef

Citing Spin-Weighted Spheroidal Harmonics

If you use Spin-Weighted Spheroidal Harmonics in your research, please acknowledge the Toolkit:

Spin-Weighted Spheroidal Harmonics also requests the following citations:

• SpinWeightedSpheroidalHarmonics
  BibTeX

  @software{BHPToolkit:SpinWeightedSpheroidalHarmonics,
    author       = {Wardell, Barry and Warburton, Niels and Cunningham, Kevin and Ottewill, Adrian and Casals, Marc and Neef, Jakob and Upton, Samuel D. and Fransen, Kwinten},
    title        = {SpinWeightedSpheroidalHarmonics},
    month        = sep,
    year         = 2026,
    publisher    = {Zenodo},
    version      = {1.1.1},
    doi          = {10.5281/zenodo.22809903},
    url          = {https://doi.org/10.5281/zenodo.22809903},
    swhid        = {swh:1:dir:f09182c98751055ea8450962b95b6aaa5b67d049;origin=https://doi.org/10.5281/zenodo.8090680;visit=swh:1:snp:e4facb38391d33453c83f50c0e6b1c79d7853e17;anchor=swh:1:rel:1f9649ba435521ce327117247e9177ce29266695;path=BlackHolePerturbationToolkit-SpinWeightedSpheroidalHarmonics-48cd355},
  }

• For use of the analytical capabilities:
  Black Hole Perturbation Toolkit: Low frequency and post-Newtonian expansions arXiv Inspire
  BibTeX

  @article{Neef:2026qoq,
      author = "Neef, Jakob and Kavanagh, Chris and Ottewill, Adrian",
      title = "{Black Hole Perturbation Toolkit: Low frequency and post-Newtonian expansions}",
      eprint = "2609.25281",
      archivePrefix = "arXiv",
      primaryClass = "gr-qc",
      month = "9",
      year = "2026"
  }

• Black Hole Perturbation Toolkit
  BibTeX

  @misc{BHPToolkit,
    title = {{Black Hole Perturbation Toolkit}},
    howpublished = {(\href{http://bhptoolkit.org/}{bhptoolkit.org})},
  }

See how to cite for further guidance.
