Mode Selection

The mode selection module is paramount to the computational efficiency of this model. Below we show how we perform this selection operation by moving from a set of amplitudes to only those that contribute.

Mode selection by power contribution

Modes can also be weighted by a Power Spectral Density (PSD) function from your favorite sensitivity curve.

import numpy as np
import matplotlib.pyplot as plt

import few

from few.trajectory.inspiral import EMRIInspiral
from few.trajectory.ode import SchwarzEccFlux
from few.amplitude.romannet import RomanAmplitude
from few.utils.ylm import GetYlms
from few.utils.modeselector import ModeSelector

# tune few configuration
cfg_set = few.get_config_setter(reset=True)

# Uncomment if you want to force CPU or GPU usage
# Leave commented to let FEW automatically select the best available hardware
#   - To force CPU usage:
# cfg_set.enable_backends("cpu")
#   - To force GPU usage with CUDA 12.x
# cfg_set.enable_backends("cuda12x", "cpu")
#   - To force GPU usage with CUDA 11.x
# cfg_set.enable_backends("cuda11x", "cpu")

cfg_set.set_log_level("info");

# first, lets get amplitudes for a trajectory
traj = EMRIInspiral(func=SchwarzEccFlux)

# parameters
M = 1e5
mu = 1e1
p0 = 10.0
e0 = 0.7
theta = np.pi / 3.0
phi = np.pi / 2.0

t, p, e, x, Phi_phi, Phi_theta, Phi_r = traj(M, mu, 0.0, p0, e0, 1.0)

# get amplitudes along trajectory
amp = RomanAmplitude()

# Schwarzschild
a = 0.0

teuk_modes = amp(a, p, e, x)

# get ylms
ylm_gen = GetYlms(assume_positive_m=False)
ylms = ylm_gen(amp.unique_l, amp.unique_m, theta, phi).copy()[amp.inverse_lm]

# select modes

mode_selector = ModeSelector(
    amp.l_arr_no_mask, amp.m_arr_no_mask, amp.n_arr_no_mask, force_backend="cpu"
)

eps = 1e-1  # tolerance on mode contribution to total power

modeinds = [amp.l_arr, amp.m_arr, amp.n_arr]
(teuk_modes_in, ylms_in, ls, ms, ns) = mode_selector(
    teuk_modes, ylms, modeinds, eps=eps
)

print(
    "We reduced the mode content from {} modes to {} modes.".format(
        teuk_modes.shape[1], teuk_modes_in.shape[1]
    )
)

We reduced the mode content from 3843 modes to 43 modes.

Mode selection by noise-weighted power contribution

from few.summation.interpolatedmodesum import CubicSplineInterpolant

# produce sensitivity function
noise = np.genfromtxt("files/LPA.txt", names=True)
f, PSD = (
    np.asarray(noise["f"], dtype=np.float64),
    np.asarray(noise["ASD"], dtype=np.float64) ** 2,
)

sens_fn = CubicSplineInterpolant(f, PSD)

# select modes with noise weighting

# provide sensitivity function kwarg
mode_selector_noise_weighted = ModeSelector(
    amp.l_arr_no_mask, amp.m_arr_no_mask, amp.n_arr_no_mask, sensitivity_fn=sens_fn
)

eps = 1e-1  # tolerance on mode contribution to total power

fund_freq_args = (M, a, p, e, x, t)

modeinds = [amp.l_arr, amp.m_arr, amp.n_arr]
(teuk_modes_in, ylms_in, ls, ms, ns) = mode_selector_noise_weighted(
    teuk_modes, ylms, modeinds, fund_freq_args=fund_freq_args, eps=eps
)

print(
    "We reduced the mode content from {} modes to {} modes when using noise-weighting.".format(
        teuk_modes.shape[1], teuk_modes_in.shape[1]
    )
)
# plot histogram of modes
plt.figure()
plt.hist(ns, bins=100, label="n")
plt.xlabel("n")
plt.ylabel("Number of radial modes")
plt.show()

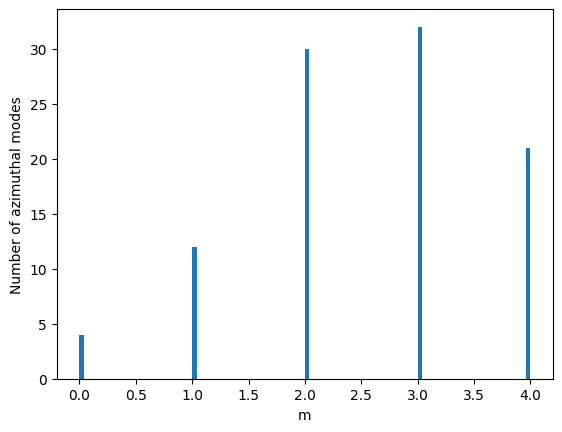

plt.figure()
plt.hist(ms, bins=100, label="n")
plt.xlabel("n")
plt.ylabel("Number of azimuthal modes")
plt.show()

New t array outside bounds of input t array. These points are filled with edge values.

We reduced the mode content from 3843 modes to 30 modes when using noise-weighting.

Compare the two waves with and without noise-weighting

from few.waveform import FastSchwarzschildEccentricFlux
from few.utils.utility import get_mismatch


noise_weighted_mode_selector_kwargs = dict(sensitivity_fn=sens_fn)

inspiral_kwargs = {
    "DENSE_STEPPING": 0,  # we want a sparsely sampled trajectory
    "buffer_length": int(1e3),  # all of the trajectories will be well under len = 1000
}

# keyword arguments for inspiral generator (RomanAmplitude)
amplitude_kwargs = {
    "buffer_length": int(1e3),  # all of the trajectories will be well under len = 1000
}

# keyword arguments for Ylm generator (GetYlms)
Ylm_kwargs = {
    "assume_positive_m": False  # if we assume positive m, it will generate negative m for all m>0
}

# keyword arguments for summation generator (InterpolatedModeSum)
sum_kwargs = {
    "pad_output": False,
}

few_base = FastSchwarzschildEccentricFlux(
    inspiral_kwargs=inspiral_kwargs,
    amplitude_kwargs=amplitude_kwargs,
    Ylm_kwargs=Ylm_kwargs,
    sum_kwargs=sum_kwargs,
)

few_noise_weighted = FastSchwarzschildEccentricFlux(
    inspiral_kwargs=inspiral_kwargs,
    amplitude_kwargs=amplitude_kwargs,
    Ylm_kwargs=Ylm_kwargs,
    sum_kwargs=sum_kwargs,
    mode_selector_kwargs=noise_weighted_mode_selector_kwargs,
)

M = 1e6
mu = 1e1
p0 = 12.0
e0 = 0.3
theta = np.pi / 3.0
phi = np.pi / 4.0
dist = 1.0
dt = 10.0
T = 0.001

wave_base = few_base(M, mu, p0, e0, theta, phi, dist=dist, dt=dt, T=T, eps=1e-2)
wave_weighted = few_noise_weighted(
    M, mu, p0, e0, theta, phi, dist=dist, dt=dt, T=T, eps=1e-2
)

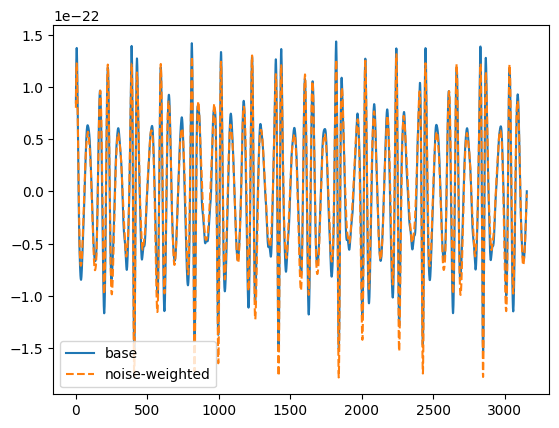

plt.plot(wave_base.real, label="base")
plt.plot(wave_weighted.real, label="noise-weighted")
plt.legend()
print("mismatch:", get_mismatch(wave_base, wave_weighted))
print("base modes:", few_base.num_modes_kept)
print("noise-weighted modes:", few_noise_weighted.num_modes_kept)

Specific mode selection

The user can also select a specific set of modes to use in the waveform.

# l = 2, m = 2 wave
specific_modes = [(2, 2, n) for n in range(-30, 31)]

wave_22 = few_base(
    M, mu, p0, e0, theta, phi, dist=dist, dt=dt, T=T, mode_selection=specific_modes
)

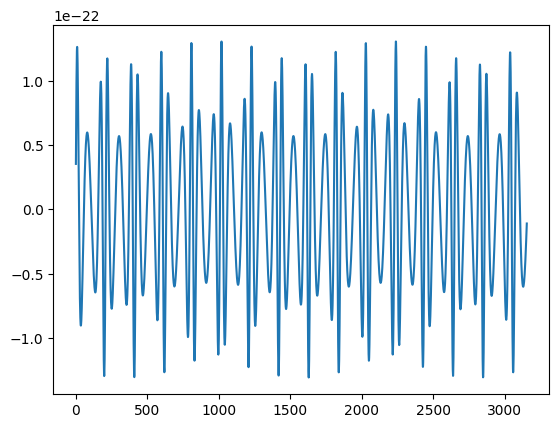

plt.plot(wave_22.real)

print("mismatch with full wave:", get_mismatch(wave_22, wave_base))

Turn off (\(-m\))

By default, symmetry is used to generate \(-m\) modes. To turn this off and only use modes with (\(m\)), provide False to the include_minus_m kwarg. This only affects the waveform when mode_selection is a list of specific modes.

%matplotlib inline
# l = 2, m = 2 wave without m = -2
specific_modes = [(2, 2, n) for n in range(-30, 31)]

specific_modes_minus_m = [(2, -2, n) for n in range(-30, 31)]

wave_22_pos_m = few_base(
    M,
    mu,
    p0,
    e0,
    theta,
    phi,
    dist=dist,
    dt=dt,
    T=0.001,
    mode_selection=specific_modes,
    include_minus_m=False,
)

wave_22_minus_m = few_base(
    M,
    mu,
    p0,
    e0,
    theta,
    phi,
    dist=dist,
    dt=dt,
    T=0.001,
    mode_selection=specific_modes_minus_m,
    include_minus_m=False,
)

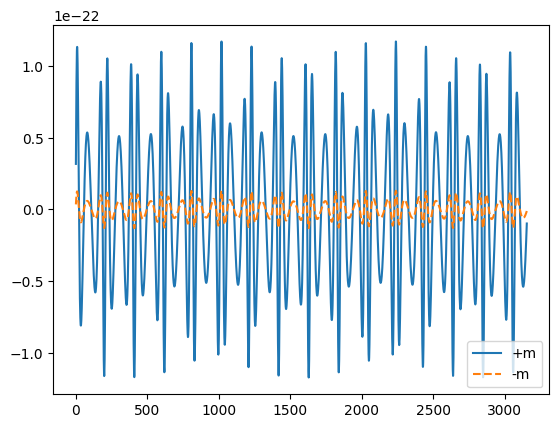

plt.plot(wave_22_pos_m.real, label="+m")
plt.plot(wave_22_minus_m.real, label="-m", ls="--")
plt.legend()
print(
    "mismatch with 22 wave with + and - m:",
    get_mismatch(wave_22_minus_m, wave_22_pos_m),
)

print(
    "mismatch with 22 original wave with adding + and - m",
    get_mismatch(wave_22, wave_22_pos_m + wave_22_minus_m),
)
